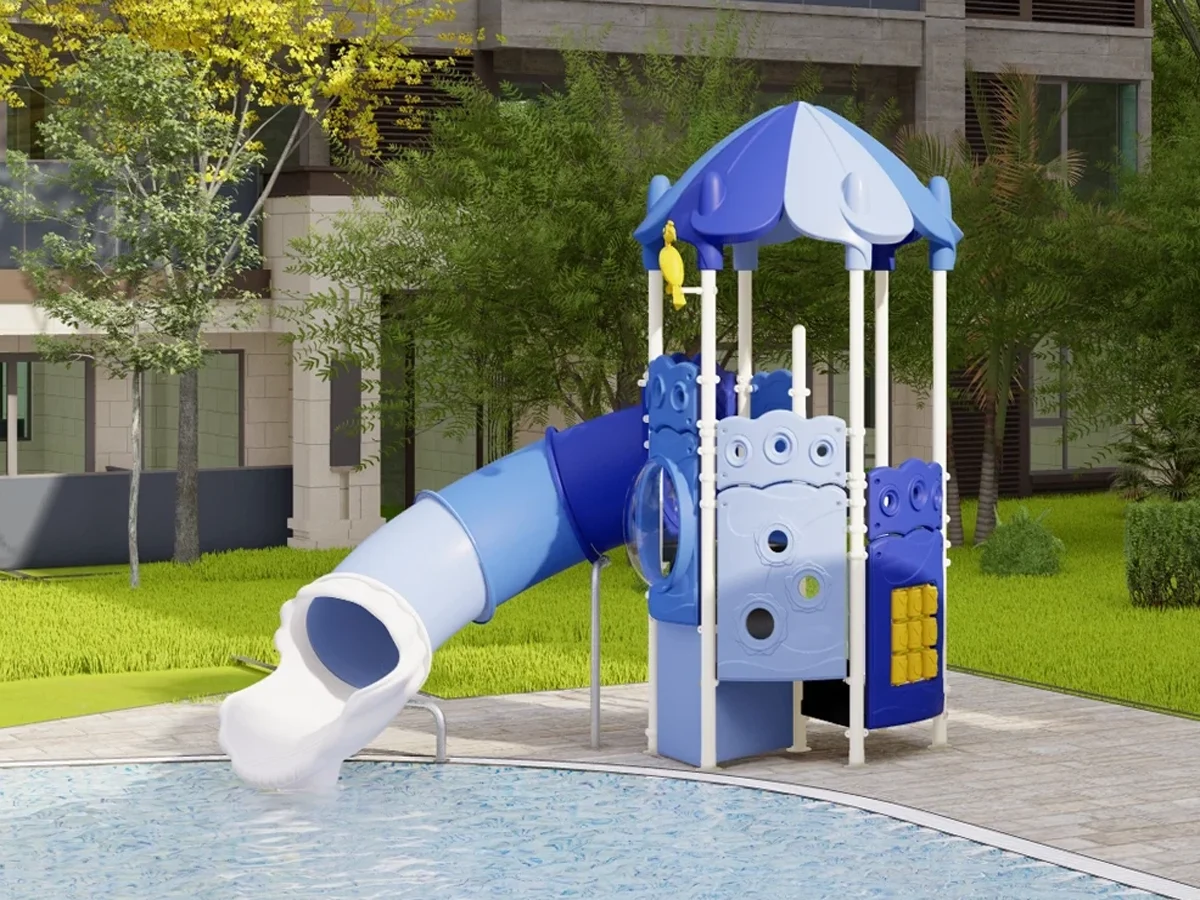

Fantacastelli® designed to be positioned at the edge of the pool. The 30° inclination of the slides allows the use in dry conditions (without water flow inside the slides). Possibility of inserting water into the slides and/or water jets from themed subjects, through the installation of a concealed hydraulic system with quick-fit polyethylene pipes, PVC glued fittings and PET nozzles. The sections of the slides that contain water are isolated using EPDM gaskets.

Technical specifications of the structure:
• main poles in ø 89 mm aluminum with a thickness of 2.5 mm, powder-coated;
• flanges for main poles in aluminum;
• slide support poles in 304 stainless steel ø 60 mm with a thickness of 3 mm;
• flanges for slide support poles in 304 stainless steel;
• 304 stainless steel bolts;
• 935 * 935 mm platforms and steel ladders coated with anti-slip and impact-absorbing PVC;
• plastic components in high-quality roto-molded LLDPE (100% recyclable), antistatic, waterproof and resistant to ultraviolet rays;
• slides with increased thickness of 10 mm;
• handles, caps for poles, steps and jaws in high-quality HDPE (100% recyclable), antistatic, waterproof and resistant to ultraviolet rays.

Structure composed of the following elements:
• n° 1 curved tube slide h 140 cm;
• n° 1 tris panel;
• n° 1 porthole panel;
• n° 1 slit panel;
• n° 1 windowsill panel;
• n° 1 3-portholes panel.
